Siemens AC Drive

Product Image ( 6SL3210-5BE15-5UV0)

SIEMENS V20 0.55KW 0.75HP DRIVE

Price: 11000 INR/Number

SINAMICS V20 380-480 V 3AC -15%/+10% 47-6 Rated power 0.55 kW with 150% overload for 60 sec. unfiltered I/O interface: 4 DI, 2 DQ, 2 AI, 1 AO Fieldbus: USS/Modbus RTU with built-in BOP Degree of protection IP20/UL open Size: Size A 90x150x146 (WxH

Product Image (03)

Ac drives

Price: 12000 INR/Piece

SINAMICS Power Module PM240-2 unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz

Product Image (V20)

SINAMICS V20 AC Drive

Price: 11000 INR/Number

The compact SINAMICS V20 is the frequency converter for simple motion sequences. It is characterized by its short commissioning times, easy handling, and energy-saving functions. The converter with its nine sizes covers the power range from 0.12 kW to 30 kW.

Product Image (6SL3244-0BB12-1PA1)

SIEMENS Control Unit CU240E-2DP AC Drive

Price: 10500 INR/Number

SINAMICS G120 CONTROL UNIT CU240E-2 DP E-TYPE SAFETY INTEGRATED STO PROFIBUS DP 6DI, 3DO, 2AI, 2AO, MAX 1F-DI PTC/KTY INTERFACE USB- AND SD/MMC-INTERFACE PROTECTION IP20 AMBIENT TEMP 0 TO +50 DEG C WITHOUT POWER MODULE AND PANEL

Product Image (6SL3210-5BE31-8UV0)

Siemens V20 22.0KW 30.0HP Drive

Price: 57000 INR/Number

SINAMICS V20 380-480 V 3AC -15%/+10% 47-6 Rated power 18.5 kW with 150% overload for 60 sec. small output overload: 22 kW with 110% overload for 60 sec. unfiltered I/O interface: 4 DI, 2 DQ, 2 AI, 1 AO Fieldbus: USS/Modbus RTU with built-in BOP Degree of protection IP20/UL open Size: Size E 244x265x209 (W

Product Image (6SL3210-5BE32-2UV0)

Siemens V20 30.0KW 40.0HP Drive

Price: 65500 INR/Number
  • Delivery Time:1 Days
  • Supply Ability:100 Per Week
  • Product Type:Siemens AC Drive
  • Weight:6.45 kg Kilograms (kg)
  • Rated Voltage:Rated voltage 400 V, Line voltage 380 ... 480 V -15 % +10 % Volt (V)
  • Warranty:1 year from date of invoice
  • Dimension(L*W*H):Width 245.0 mm ( 9.65 in ), Height 264.5 mm ( 10.41 in ), Depth 209.0 mm ( 8.23 in ) Millimeter (mm)
  • Application:Automation
  • Frequency (MHz):Pulse frequency 4.00 kHz, Output frequency 0 ... 550 Hz, Line frequency 47 ... 63 Hz Hertz (HZ)
  • Protection Level:Other
Product Image (6SL3210-5BE27-5UV0)

Siemens V20 7.5KW 10.0HP Drive

Price: 30000 INR/Number
  • Supply Ability:100 Per Week
  • Delivery Time:1 Days
  • Product Type:Siemens AC Drive
  • Rated Voltage:Rated voltage 400 V, Line voltage 380 ... 480 V -15 % +10 % Volt (V)
  • Weight:3.70 kg ( 8.16 lb ) Kilograms (kg)
  • Dimension(L*W*H):Width 240.0 mm ( 9.45 in ), Height 206.5 mm ( 8.13 in ), Depth 172.5 mm ( 6.79 in ) Millimeter (mm)
  • Warranty:1 year from date of invoice
  • Protection Level:Other
  • Frequency (MHz):Pulse frequency 4.00 kHz, Output frequency 0 ... 550 Hz, Line frequency 47 ... 63 Hz Kilohertz ( KHZ )
  • Application:Automation
Product Image (6SL3210-5BE31-1UV0)

Siemens V20 11.0KW 15.0HP Drive

Price: 38000 INR/Number

SINAMICS V20 380-480 V 3AC -15%/+10% 47-6 Rated power 11 kW with 150% overload for 60 sec. unfiltered I/O interface: 4 DI, 2 DQ, 2 AI, 1 AO Fieldbus: USS/Modbus RTU with built-in BOP Degree of protection IP20/UL open Size: Size D 240x207x173 (WxHxD)

Product Image (6SL3210-5BB21-1UV1)

Siemens V20 1.1KW 1.5HP Drive

Price: 8000 INR/Number
  • Protection Level:Other
  • Application:Automation
  • Frequency (MHz):Pulse frequency 8.00 kHz, Output frequency 0 ... 550 Hz, Line frequency 47 ... 63 Hz Kilohertz ( KHZ )
  • Dimension(L*W*H):Width 91.0 mm ( 3.57 in ), Height 160.9 mm ( 6.33 in ), Depth 147.0 mm ( 5.79 in ) Millimeter (mm)
  • Warranty:1 year from date of invoice
  • Rated Voltage:Rated voltage 230 V, Line voltage 200 ... 240 V -15 % +10 % Volt (V)
  • Weight:1.20 kg ( 2.65 lb ) Kilograms (kg)
  • Product Type:Siemens AC Drive
  • Delivery Time:1 Days
  • Supply Ability:100 Per Week
Product Image (6SL3210-5BB17-5UV1)

SIEMENS V20 0.75KW 1.0HP DRIVE

Price: 7000 INR/Number
  • Supply Ability:100 Per Week
  • Delivery Time:1 Days
  • Weight:0.90 kg ( 1.98 lb ) Kilograms (kg)
  • Rated Voltage:Rated voltage 230 V ,Line voltage 200 ... 240 V -15 % +10 % Volt (V)
  • Product Type:Siemens AC Drive
  • Frequency (MHz):Pulse frequency 8.00 kHz, Output frequency 0 ... 550 Hz, Line frequency 47 ... 63 Hz Kilohertz ( KHZ )
  • Application:Automation
  • Protection Level:Other
  • Warranty:1 year from date of invoice
  • Dimension(L*W*H):Width 68.0 mm ( 2.68 in ), Height 142.0 mm ( 5.59 in ), Depth 127.8 mm ( 5.03 in ) Millimeter (mm)
Product Image (6SL3210-5BB13-7UV1)

SIEMENS V20 0.37KW 0.50HP DRIVE

Price: 6000 INR/Number
  • Supply Ability:100 Per Week
  • Delivery Time:1 Days
  • Product Type:Siemens AC Drive
  • Weight:0.70 kg ( 1.54 lb ) Kilograms (kg)
  • Rated Voltage:Rated voltage 230 V, Line voltage 200 ... 240 V -15 % +10 % Volt (V)
  • Warranty:1 year from date of invoice
  • Dimension(L*W*H):Width 68.0 mm ( 2.68 in ), Height 142.0 mm ( 5.59 in ), Depth 107.8 mm ( 4.24 in ) Millimeter (mm)
  • Frequency (MHz):Pulse frequency 8.00 kHz, Output frequency 0 ... 550 Hz, Line frequency Kilohertz ( KHZ )
  • Application:Automation
  • Protection Level:Other
Product Image (6SL3210-5BE31-5UV0)

SIEMENS V20 15.0KW 20.0HP DRIVE

Price: 48000 INR/Number

SINAMICS V20 380-480 V 3AC -15%/+10% 47-6 Rated power 15 kW with 150% overload for 60 sec. unfiltered I/O interface: 4 DI, 2 DQ, 2 AI, 1 AO Fieldbus: USS/Modbus RTU with built-in BOP Degree of protection IP20/UL open Size: Size D 240x207x173 (WxHxD)

Product Image (6SL3210-1PE33-0CL0)

Siemens G120 PM240-2 160KW 250HP Drive

Price: 390000 INR/Number

Specifications: SINAMICS G120/S120 POWER MODULE PM240-2 FSG Integrated Filter EMC Class C3 WITH BUILT IN BRAKING CHOPPER 3AC380-480V+10/-10% 47-63Hz OUTPUT HIGH OVERLOAD: 132kW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 bis +50 DEG C (HO) OUTPUT LOW OVERLOAD: 160kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 bis +40 DEG C (LO) 1000x305x357 (HXWXD), FSG PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- Version V4.7 SP9 AND V5.1

Product Image (6SL3210-1PE32-5UL0)

Siemens G120 PM240-2 132KW 200HP Drive

Price: 330000 INR/Number

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 110KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 132kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Product Image (6SL3210-1PE32-1UL0)

Siemens G120 PM240-2 110KW 150HP Drive

Price: 285000 INR/Number

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 90KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 110kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Product Image (6SL3210-1PE31-8UL0)

Siemens G120 PM240-2 90KW 125HP Drive

Price: 250000 INR/Number

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 90kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Product Image (6SL3210-1PE31-5UL0)

Siemens G120 PM240-2 75KW 100HP Drive

Price: 200000 INR/Number

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 55KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 75kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Product Image (6SL3210-1PE31-1UL0)

Siemens G120 PM240-2 55KW 75HP Drive

Price: 177000 INR/Number

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 551 X 275 X 237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Product Image ( 6SL3210-1PE28-8UL0)

Siemens G120 PM240-2 45KW 60HP Drive

Price: 150000 INR/Number

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 37KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 45kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 551 X 275 X 237 (HXWXD), FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Product Image (6SL3210-1PE27-5UL0)

Siemens G120 PM240-2 37KW 50HP Drive

Price: 130000 INR/Number

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 30KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 37kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Product Image (6SL3210-1PE26-0UL0)

Siemens G120 PM240-2 30KW 40HP Drive

Price: 98000 INR/Number

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 22KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 30kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Product Image ( 6SL3210-1PE24-5UL0)

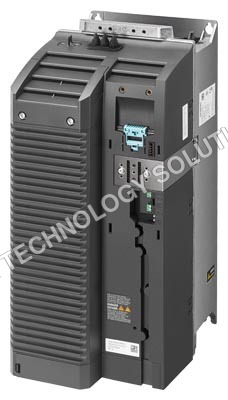

Siemens G120 PM240-2 22.0KW 30.0HP Drive

Price: 83000 INR/Number

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 18.5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 22kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Product Image (6SL3210-1PE23-8UL0)

G120 PM240-2 18.5KW 25.0HP Drive Siemens

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 15KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 18.5kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
